Produk: Mobile Compactor System (Mechanical)    steel furniture



  • Hubungi Kami Untuk Sebutharga

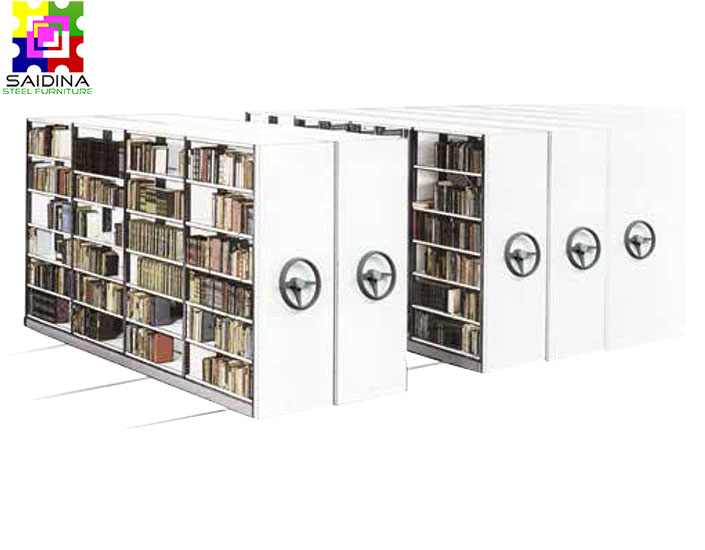

Mechanical Mobile Compactor System

HARGA
1 BAY DEEP  RM1,430 - RM2,200 PER BAY
2 - 8 BAY DEEP  RM1,358 - RM2,090 PER BAY
Mobile Compactor
  • Projek

Galeri Foto

  • Mobile Compactor Storage System

Tonton Video

Maklumat produk.

LINING PLATFORM

Design to Perfection

Thanks to our all-encompassing, extensive market research, we build the mobile compactors tailored to 21st century needs.

Our key strengths are:
i. Platform with adjustable foot caps (no drilling or pre-leveling on the floor is needed
ii. Easy setup, assembling, leveling, and disassembly

Introduction

Our mechanical wheel type mobile compactor is designed using different gear ratio so that the cabinet can be moved by generally turning the handwheel. This design minimizes the power to move a large object. Besides, gears and roller chains have been tested for the firmness. This is the reason why we can vouch that our mobile compactor can move much smoother and quieter.

Ideal For:

  • Office Supplies
  • Medical Supplies
  • Backroom Inventory
  • Sporting Goods
  • Law Books
  • Media
  • Parts
  • Tools
handpush-features-1
handpush-features-2
handpush-manual-type
  • Platform with adjustable foot caps (no drilling or pre-leveling on the floor is needed)
  • Foot cap height adjusts up to 30mm
  • Rails are made of 3mm cold rolled steel using laser cut process
  • Pretreatment process including deionized water rinse followed by electrostatic polyesterepoxy powder coating as standard finish
  • Industrial wheels – quiet & strong
  • Standard in track anti-tilt mechanism
  • The built-in safety locks for mechanical type cabinets are designed to safeguard users from being accidentally trapped in aisles
  • Heavy duty iron die casting wheels with anti-rust zinc coating
  • Close type front panel that avoids dust
  • Central lock system
TYPES SPECIFICATIONS
MATERIAL Cold Rolled Steel
FINISH Epoxy Powder Coating
SHELF SIZE 897(W) x 361(D) x 25(H)
NO. OF SHELF 4 pieces per bay
LOADING PER SHELF 70kg UDL
AISLE SIZE 780/ 800mm
MATERIAL THICKNESS Back Panel : 0.7mm, Shelf : 0.7mm, Side Panel : 0.7mm, Base Frame : 2mm, Post : 1.5mm, Top Panel : 1.0mm, Front Panel : 0.8/ 1.0mm
RAIL WITH PLATFORM Rail : 3mm Cold Rolled Steel with Laser Cut Process / Complete with Adjustable Foot Cap, Platform : 18mm Chipboard
POST C-Channel Post with Slots in 25mm increment
ANTI TILT MECHANISM Nylon Guide D40mm
WHEEL Iron Die Casting with Anti-rust Zinc Coating, Loading : 1000kg/ Wheel
mobile compactor technical info
mobile compactor technical info
mobile compactor accessories          mobile compactor accessories          mobile compactor accessories

Model: MMC001

HARGA: Hubungi kami untuk sebutharga

DESC : MMC DESK TOP<
DIMENSION : 852(W) X 360(D) X 37(H)
PACKING DIM : 872 X 380 X 47
WEIGHT / VOL : 4 KG / 0.02 M³



Model: MMC002

HARGA: Hubungi kami untuk sebutharga

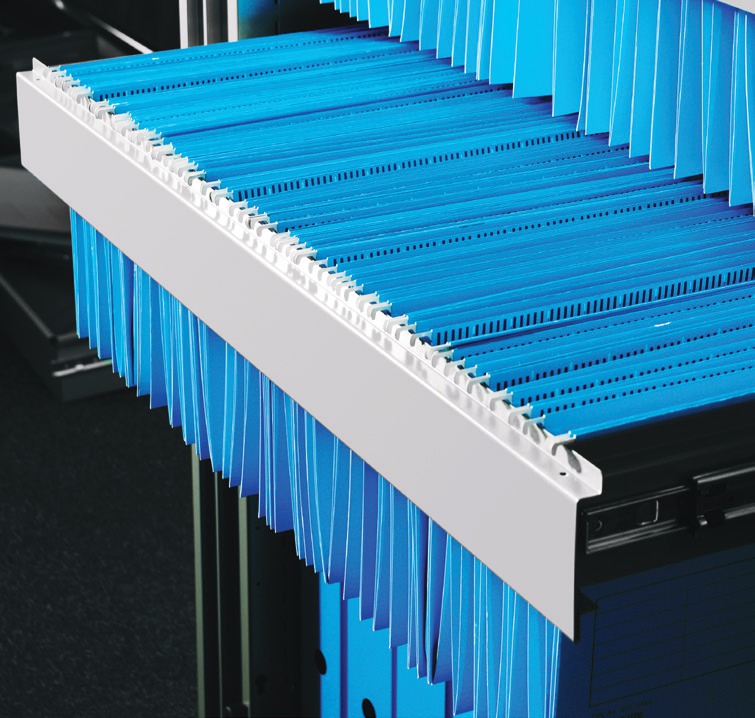

DESC : DESC : MMC LATERALFRAME
DIMENSION : 895(W) X 360(D) X 97(H)
PACKING DIM : 915 X 380 X 117
WEIGHT / VOL : 5 KG / 0.04 M³



Model: MMC003

HARGA: Hubungi kami untuk sebutharga

DESC : DESC : MMC SHELF
DIMENSION : 897(W) X 361(D) X 25(H)
PACKING DIM : 910 X 380 X 40
WEIGHT / VOL : 2.2 KG / 0.01 M³
mobile compactor accessories          mobile compactor accessories          mobile compactor accessories

Model: MMC004

HARGA: Hubungi kami untuk sebutharga

DESC : MMC CLOTH HANGING ROD
DIMENSION : 870(W) X 333(D) X 70(H)
PACKING DIM : 890 X 90 X 90
WEIGHT / VOL : 1.5 KG / 0.01 M³



Model: MMC005

HARGA: Hubungi kami untuk sebutharga

DESC : MMC DRAWER
DIMENSION : 875(W) X 360(D) X 150(H)
PACKING DIM : 895 X 380 X 170
WEIGHT / VOL : 6 KG / 0.07 M³



Model: MMC006

HARGA: RM243.75 - RM325.00

DESC : MMC SWING DOOR
DIMENSION : 895(W) X 20(D) X 1985(H)
PACKING DIM : 70 X 500 X 2000
WEIGHT / VOL : 15 KG / 0.07 M³
